| Here is the roof stripe sketch. I documented several
original paint parts cars that I've had with what I believe to be

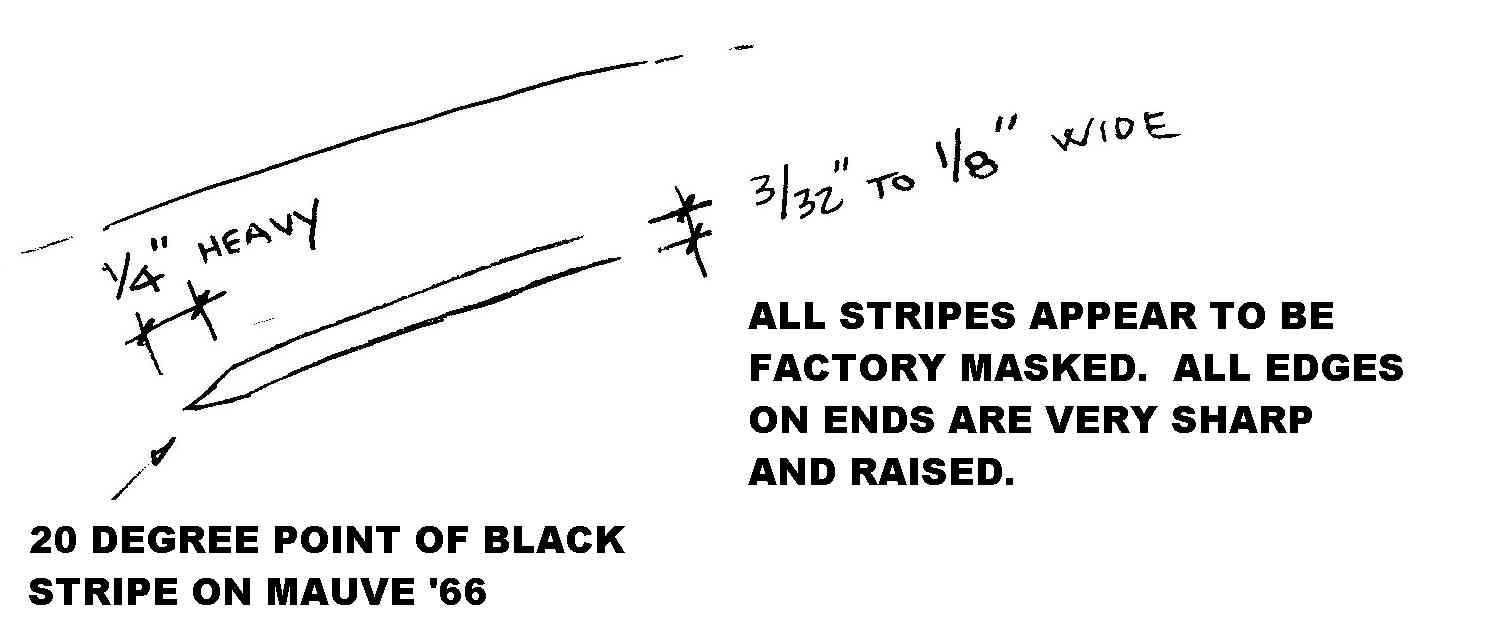

factory stripes. The stripe on the '66 mauve car terminates at the back

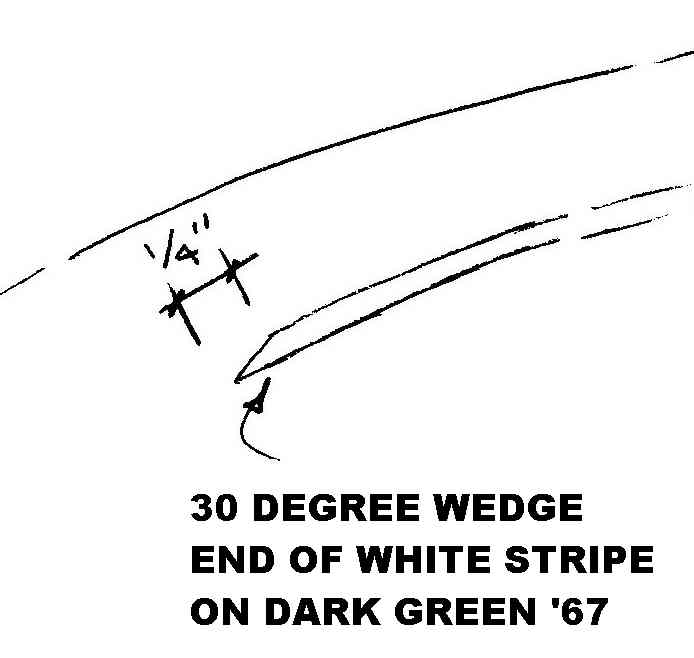

with a point, that is like a 'V' cut at the end. The other on a green
'67 is simple cut wedge style, like a chisel point. I can't say this is
a model year difference, or just a production variation.

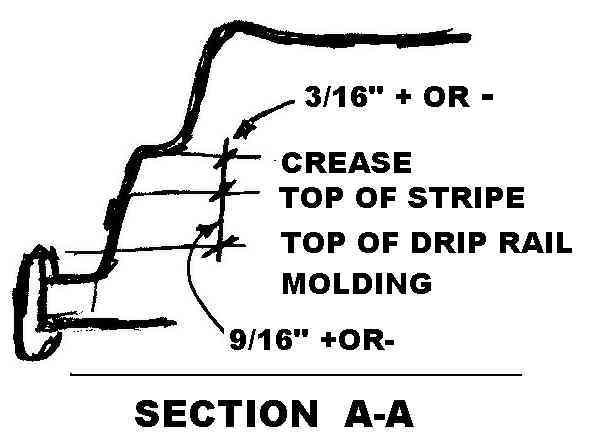

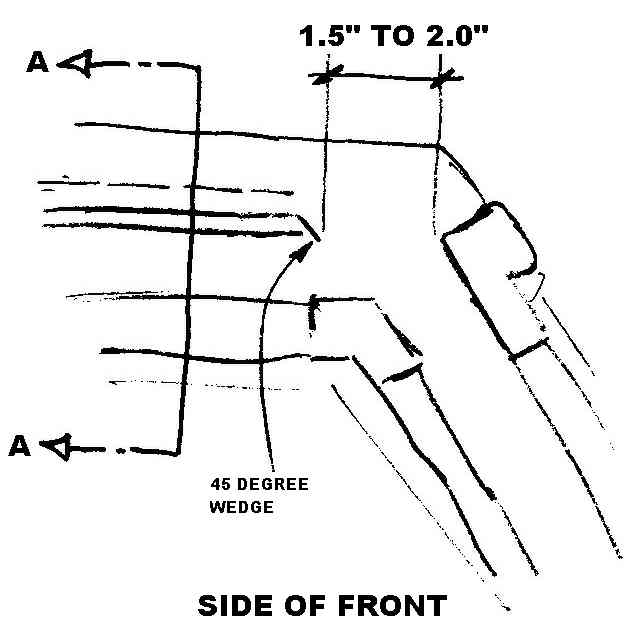

Here are 5 hand-drawn, detailed pictures of the stripes.
A B C D E
Use your "back" button to return to this page.
Here are shot's of Cora's Bloomington Ghost (original
unrestored)

Pictures are also available at Tom's site: 1 and 2 |
